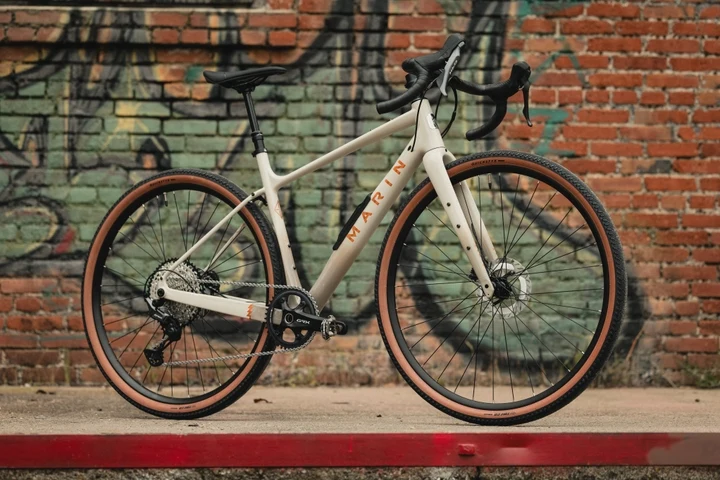

Frame: Unidirectional Carbon, Thru-Axle Tire Clearance: up to 700Cx45 or 650Bx50 Fork: Marin Full Carbon Groupset: SRAM Apex 1 1x12 Speed Brake: SRAM Apex 1 Flat-Mount Hydraulic Disc, 160mm Rotor Seatpost: TranzX YSP38J, Size 49-54 70mm, Size 56-60 110mm Travel, 27.2mm Wheel: Marin Aluminum Double Wall, 21mm Inner, 21mm Tall, Disc Specific, Tubeless Compatible Tire: Vee Tire Co., G-Sport, 700c x 44mm, Tubeless Compatible
RM9999
- Brand: Marin
- Shipping:
Learn More
SPECIFICATIONS
| Model | Headlands 2 | Headlands 1 |
| Frame | Unidirectional Carbon Beyond Road Platform 1x Drivetrain Specific 700c x 45mm/650B x 50mm Compatible Flat Mount Disc 142x12mm Thru-Axle Internal Dropper Post Routing Internal Housing Routing Mudguard and Rear Carrier Mounting Plentiful Gear Mounts | |
| Fork | Marin Full Carbon w/ Tapered Steerer 12mm Thru-Axle Flat-Mount Disc Fender Eyelets | |
| Rear Derailleur | SRAM Apex 1 1x12-Speed | |
| Shifter | SRAM Apex 1 1x12-Speed | Shimano GRX RX600 |
| Crankset | SRAM Apex 1, 40T | Forged Alloy 1x11, Hollow CrMo Spindle, Narrow Wide 40T |
| Cassette | SRAM CS-XG-1275, 10-52T | Shimano CSM8000, 11-Speed, 11/42T |
| Brake | SRAM Apex 1 Flat-Mount Hydraulic Disc, 160mm Rotor | Shimano GRX Hydraulic Disc, 160mm Rotor |
| Wheelset | Marin Aluminum Double Wall, 21mm Inner, 21mm Tall, Disc Specific, Tubeless Compatible | |
| Handlebar | Marin Butted Alloy, Compact 16º Flared Drop | |
| Stem | Marin 3D Forged Alloy | |
| Seatpost | TranzX YSP38J, Size 49-54 70mm, Size 56-60 110mm Travel, 27.2mm | Marin Alloy, 27.2mm |
| Saddle | Marin Beyond Road Concept Elite | Marin Beyond Road Concept |
| Weight | ||
| Color | Gloss Dark Blue | Gloss Chrome |
*THE SPECIFICATIONS, COLORS, AND AVAILABILITY OF THE PRODUCTS CAN BE SUBJECTS TO ALTER WITHOUT PRIOR NOTIFICATION
GEOMETRY
| 49 | 52 | 54 | 56 | 58 | ||
| Rider's Height | ||||||
| A | STACK | 550.3 | 565.7 | 581.8 | 600.8 | 619.7 |
| B | REACH | 370 | 372.8 | 372.7 | 386.4 | 411.4 |
| C | HEADTUBE ANGLE | 70.5 | 71 | 71.5 | 71.5 | 71.5 |
| D | HEADTUBE LENGTH | 120 | 135 | 150 | 170 | 190 |
| E | SEATTUBE ANGLE | 74.5 | 74 | 73.5 | 73.5 | 73.5 |
| F | SEATTUBE LENGTH | 440 | 470 | 490 | 510 | 530 |
| G | TOPTUBE EFFECTIVE | 522 | 535 | 545 | 565 | 595 |
| H | BB HEIGHT | 283.5 | 272 | 272 | 272 | 272 |
| I | BB DROP | 76 | 76 | 76 | 76 | 76 |
| J | CHAINSTAY | 420 | 420 | 420 | 420 | 420 |
| K | WHEELBASE | 1010.2 | 1007.4 | 1007.4 | 1028.5 | 1059.2 |
| L | STANDOVER HEIGHT | 711 | 725 | 741 | 758 | 775 |
| M | FORK OFFSET | 50 | 50 | 50 | 50 | 50 |
Type
Gravel, Touring
Frame
Carbon
Speed
Mechanic 1x11
Brake
Hydraulic Disc Brake
Wheel Size
700C
